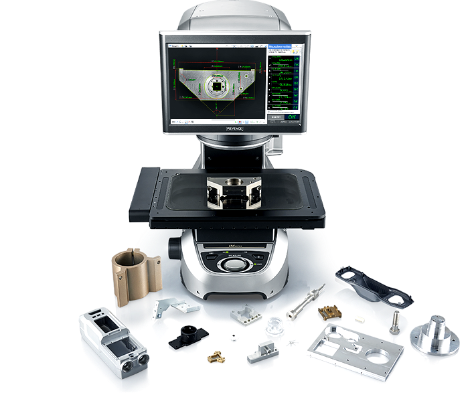

• Optical Comparator (Profile Projector) IM Series

  • Automated Profile Projector

    The Profile Projector IM Series is an automated, instant measurement system that:
    • Measures 300 critical dimensions in 1 second.
    • Eliminates the operators' subjectivity.
    • Automatically records data and generates inspection reports.
    • Easy-to-use software, fast processing and accurate measurements.

    For more information on the profile projector please download the brochure o request a technical consultation

  • Characteristics of the Profile Projector

    The Profile Projector houses 24 fixed position lens, two cameras and a collimated lighting in order to measure 300 critical features within 1 second.  All measurement results are stored in automatically generated inspection reports that prove out the accuracy and repeatability of the unit.

  • Why upgrade to the IM Profile Projector?

    The IM Series system is easy-to-use, fast and accurate. The Profile Projector can be can used by anyone, anywhere in your facility. Operators are able to measure 300 critical features of a piece just pushing a button, resulting in an increase of the overall quality inspection and a reduction of costs.

  • Spring

  • Lathe Processing

  • Threads

  • Plastic with Toplight

For more information on the profile projector please download the brochure.
